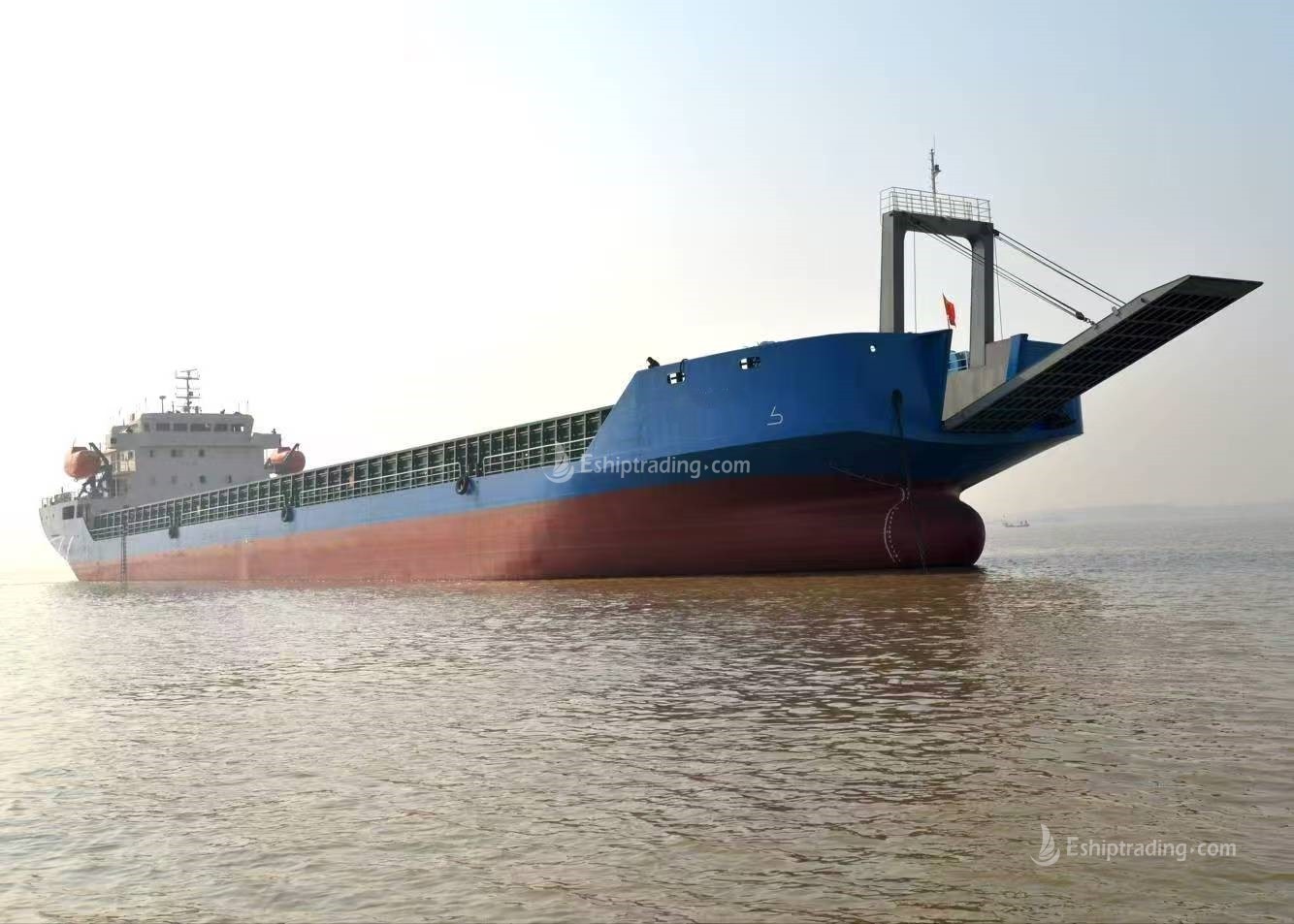

Vessel’s Specification
Ship Name：
***
IMO No.：
Ship Type：
Deck Barge /LCT
Class：
ZC
Built Place：
China
Navigation Area：
A1+A2
Flag：
China
Built Date：
2015.12
Loa：
108.14M
Breadth：
21.8M
Depth：
6M
Draft：
4.5M
DWT：
6000T
GT：
4002T
NT：
2241T
Deck Loading：
15t/㎡
ME Brand：
Zibo diesel engine
Main Engine Model：
LC6250ZLC
ME Power：
2648kw
RPM：
825R/Min
Speed：
12KN
Aux. Engine Brand：
Yulin diesel engine
Aux. Engine No.：
3
Aux. Engine Power：
176kw
Oil Consumption：
6T/D
Main Engine No：
Double

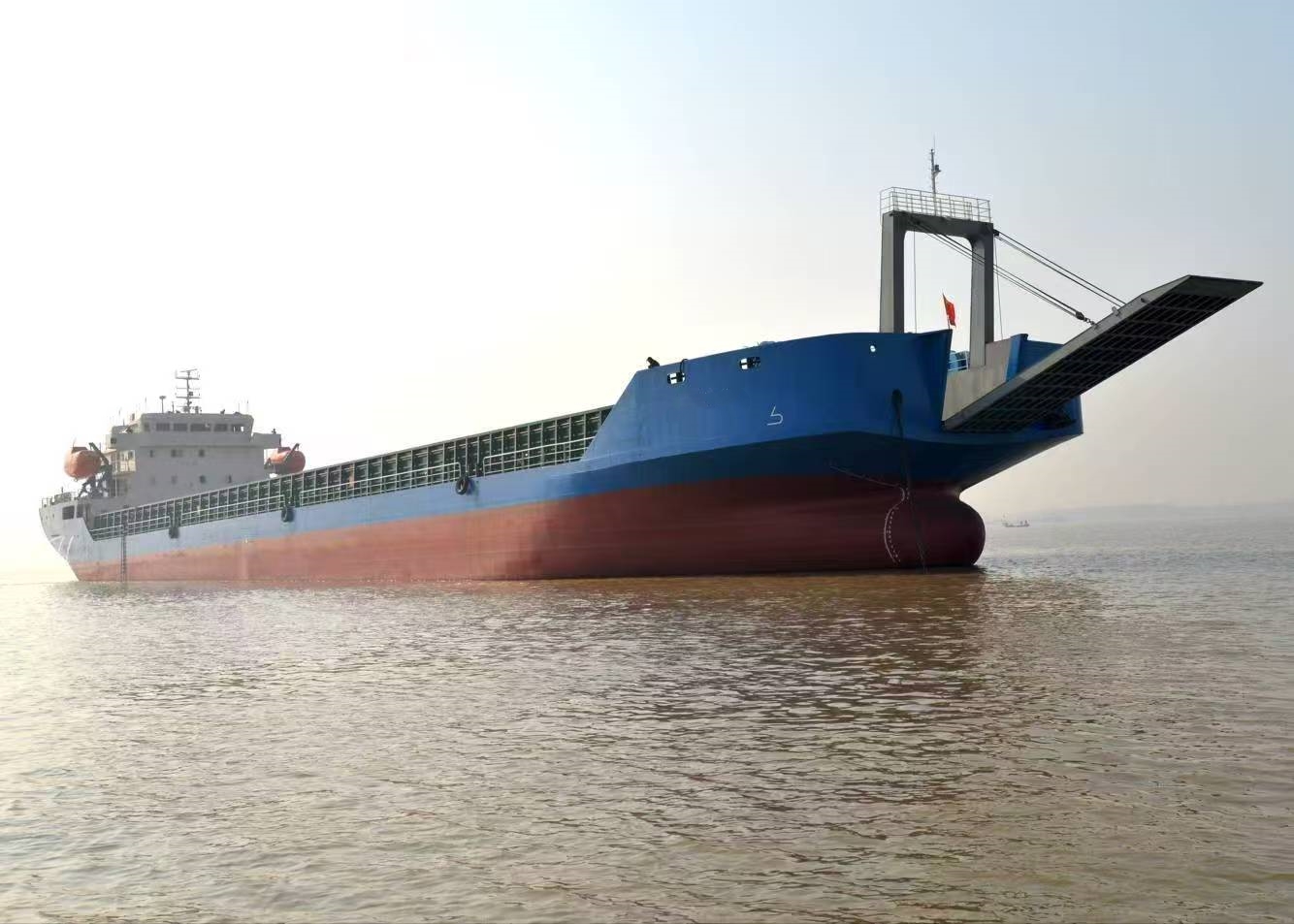

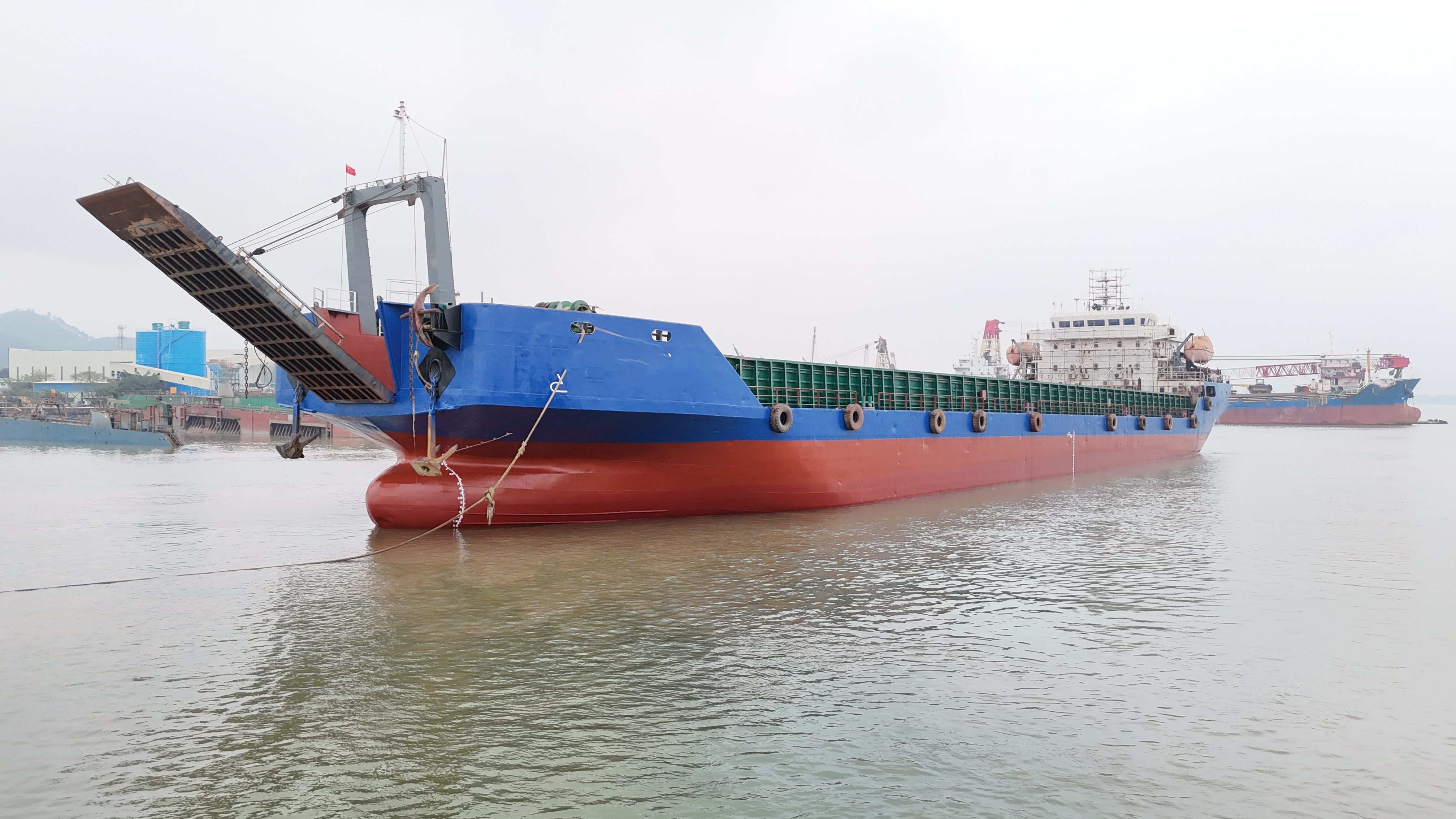

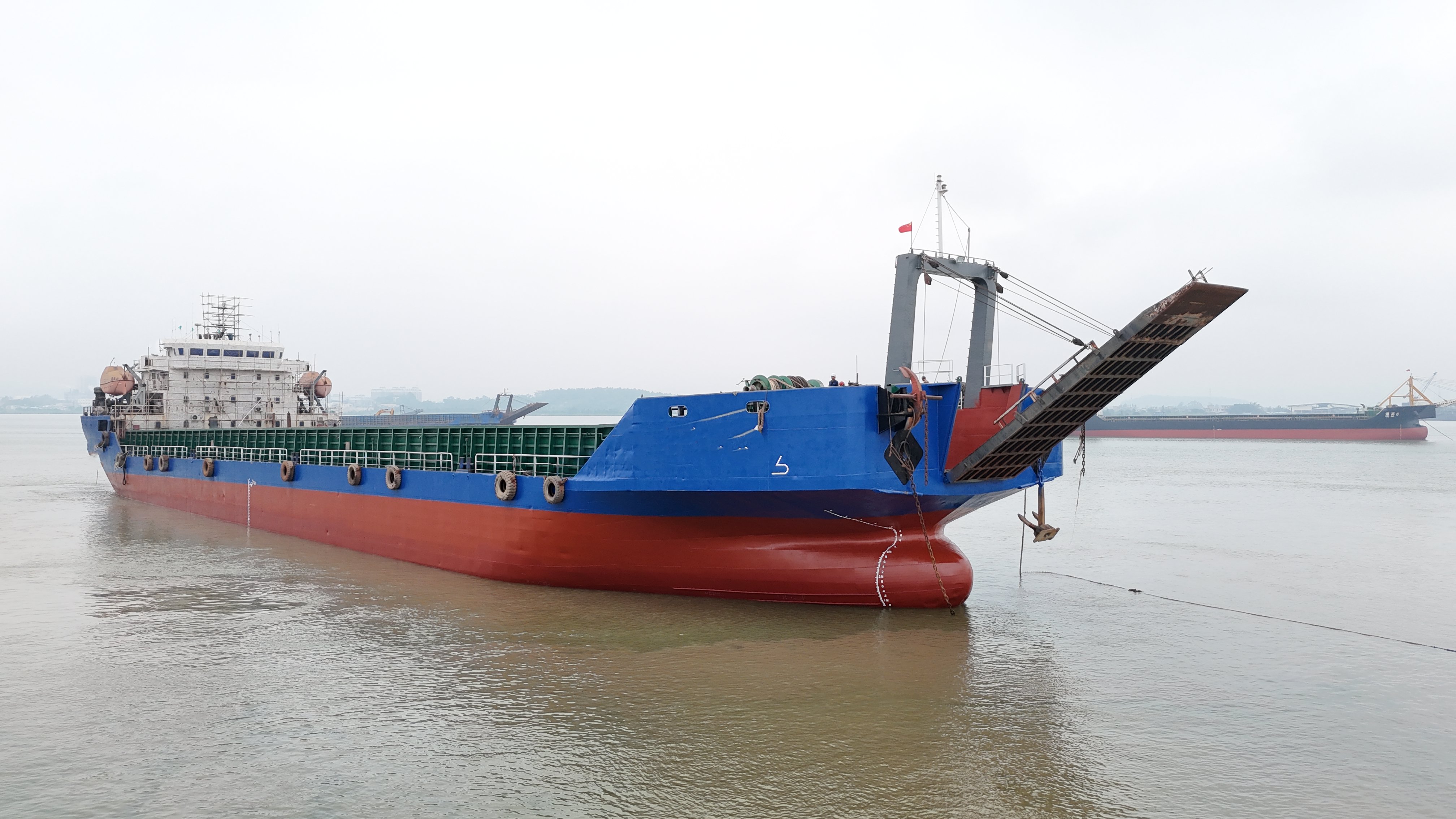

Ramp：
yes
Derrick/Crane：
no
Hull Construction Type：
Single Hull
Bridge Arrangement Type：
Astern Type
NOx emission standard of diesel engine：
Tier II
Release Date：
2025.04.28
Certificates, Drawings
Certificate of Inspection：
yes
General Arrangement Plan (GA)：
yes
Certificate of Ship Ownership：
yes
Certificate of Registry：
yes
Ship Equipment List：
No
Remarks

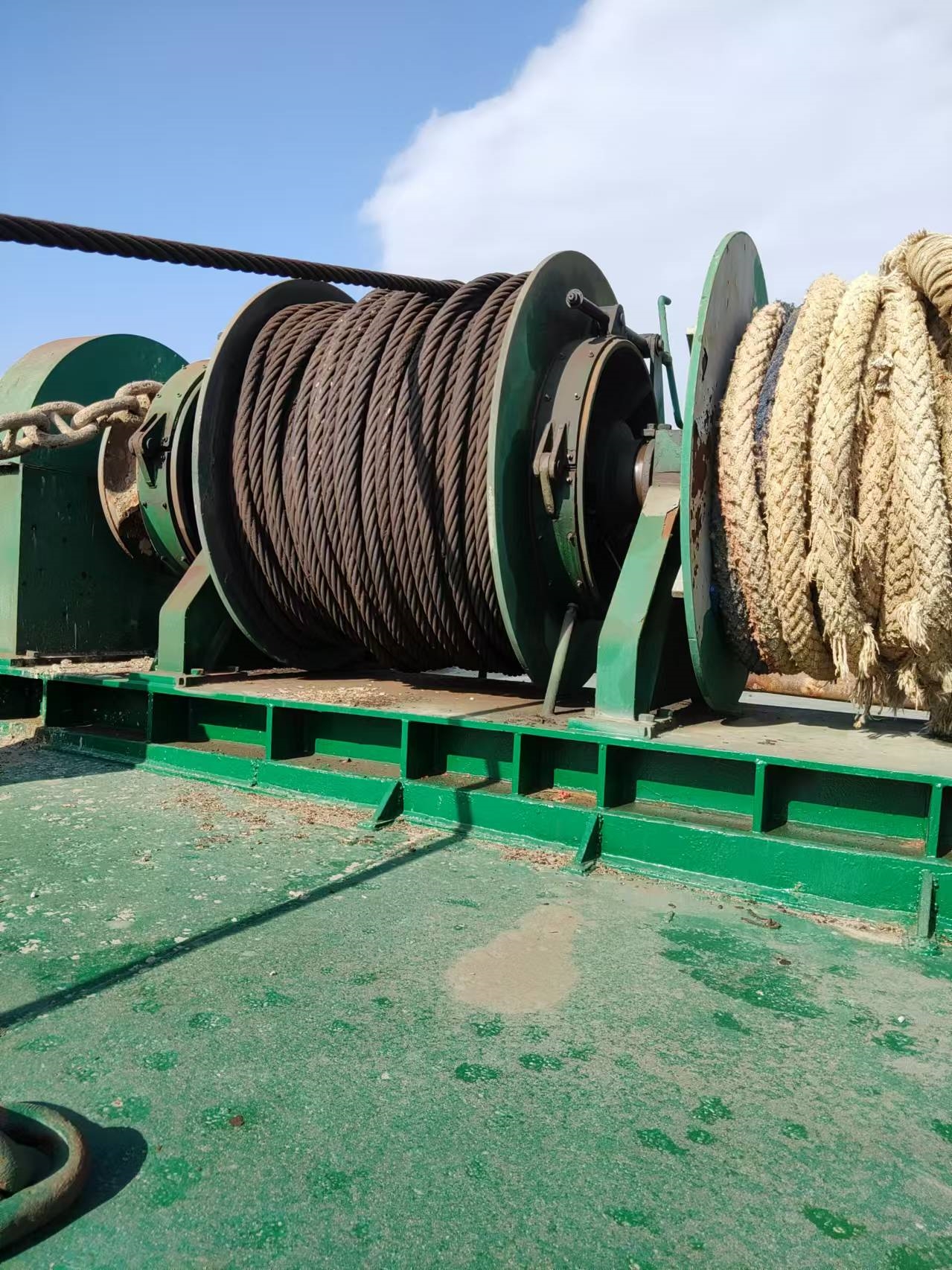

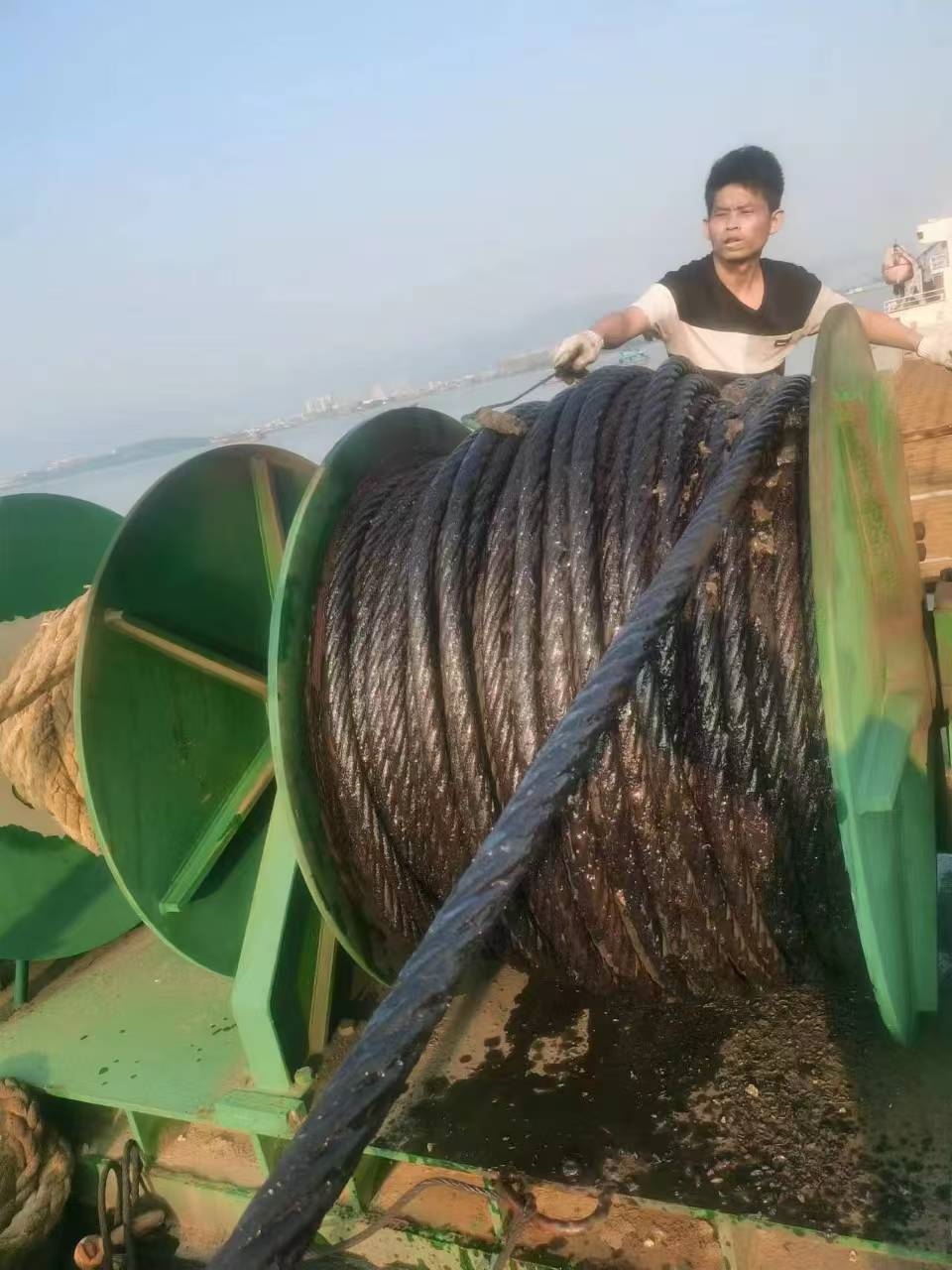

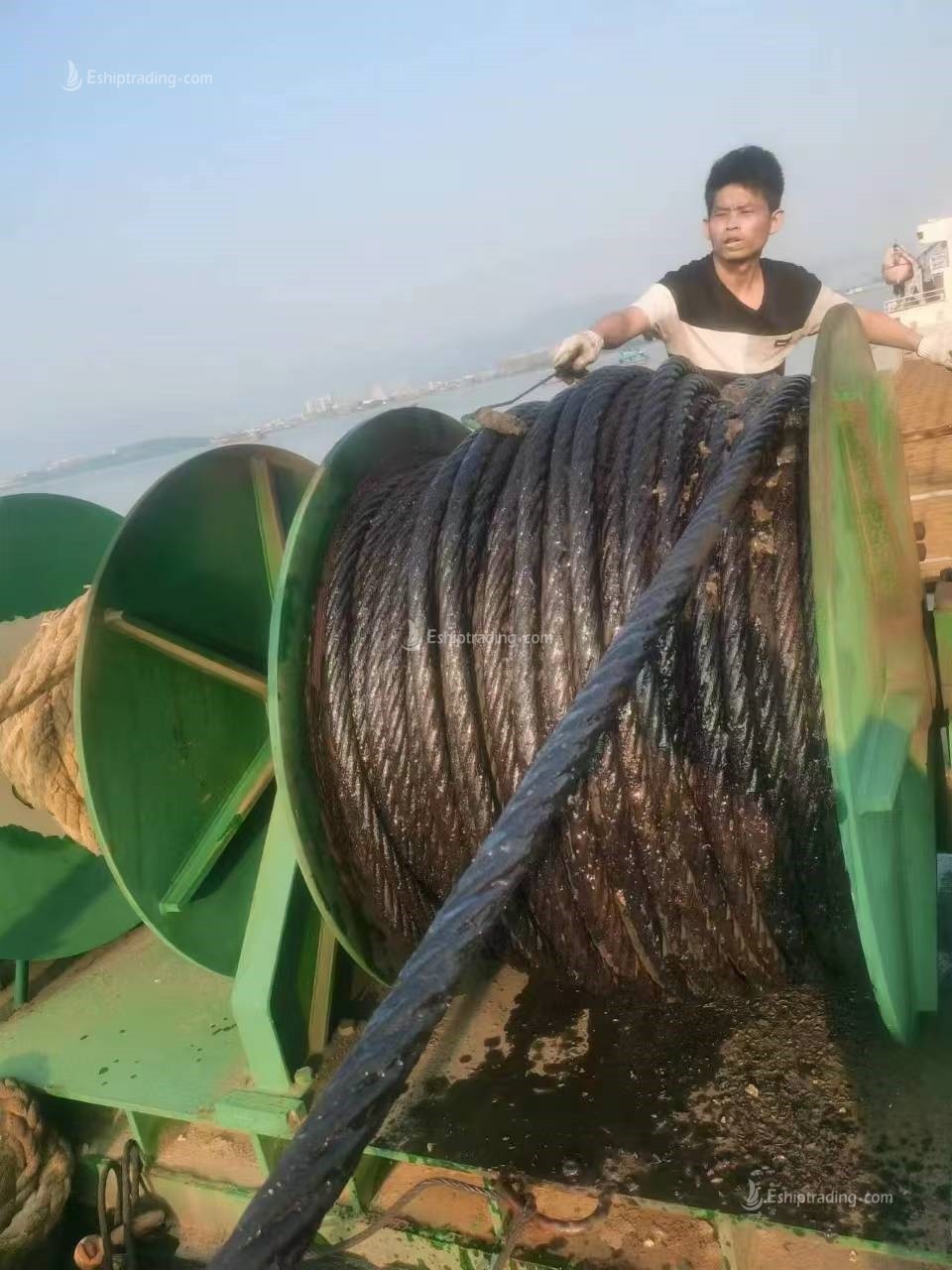

This ship was built as required by the military. The ship's deck is made of 20mm thick steel plates and a large amount of materials are used. The steel plates of ordinary ships are only 10 to 12 tons， and the hull strength is high. Other commercial ships have only 5 ballast tanks on each side， but this ship has 8 ballast tanks on each side. All valves are made of copper. Four anchors are used for positioning. In 2016， four 25-ton anchor machines were installed， with 5 tons of high-grip anchors. The steel wire rope is 44 meters thick and 550 meters long. After being used by the military， it was put into use by China Communications. In total， it has only been in use for over four years. The vessel has been at anchor for a relatively long time. Under good sea conditions， its maximum speed can reach 17 knots.It can carry 161TEU containers.
