Vessel’s Specification
Ship Name：
***
IMO No.：
***
Ship Type：
AHTS
Class：
CCS
Built Place：
South Korea
Navigation Area：
A1+A2+A3
Flag：
China
Built Date：
2003.07
Loa：
68.9M
Breadth：
15.5M
Depth：
7M
Draft：
5M
DWT：
2110T
GT：
2330T
NT：
749T
Deck Area：
471㎡
Deck Loading：
10t/㎡
Capstan：
20T
Tugger：
20T
Bollard pull：
141.35T
Liquid Mud/Brine：
440m³

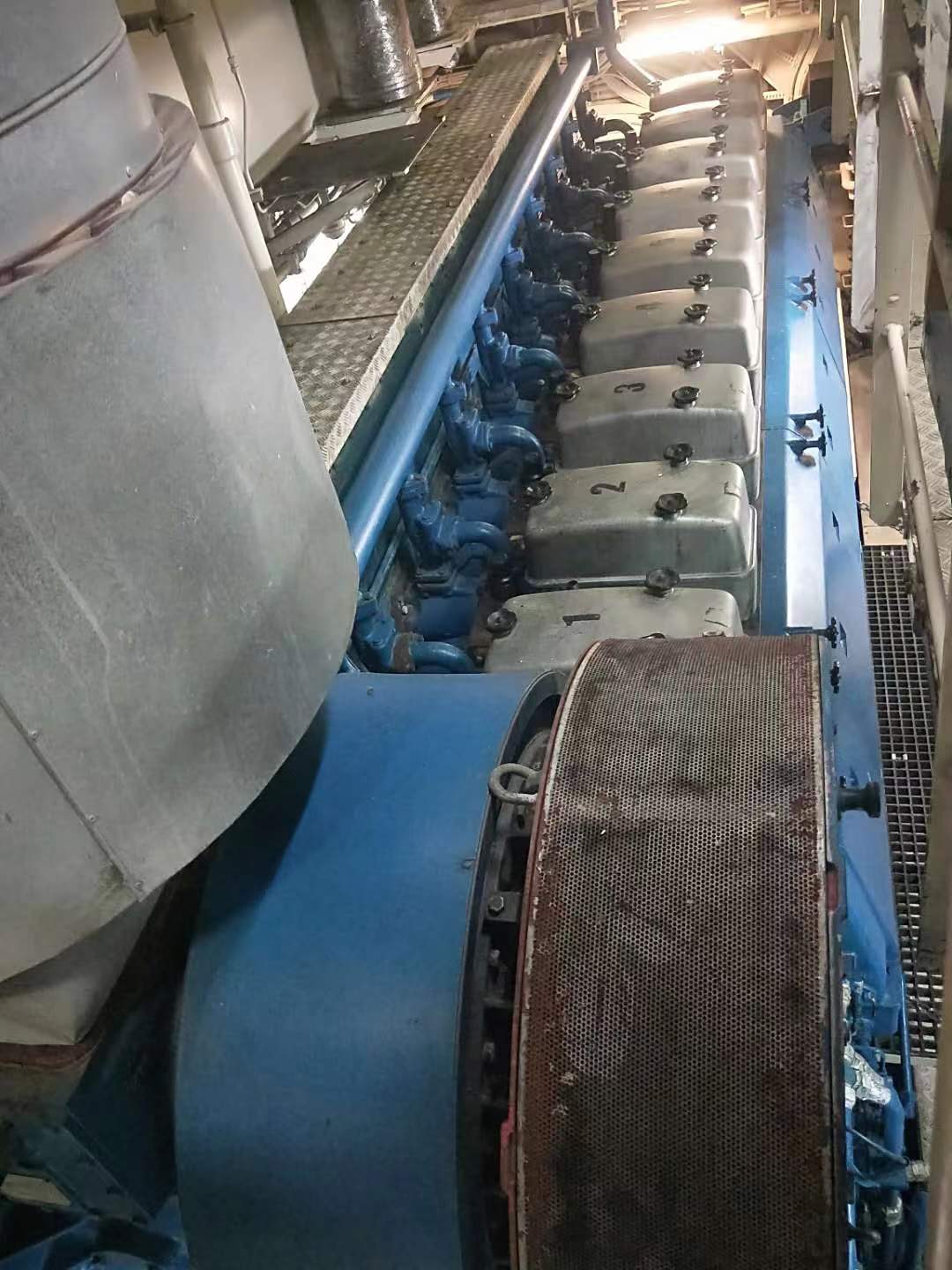

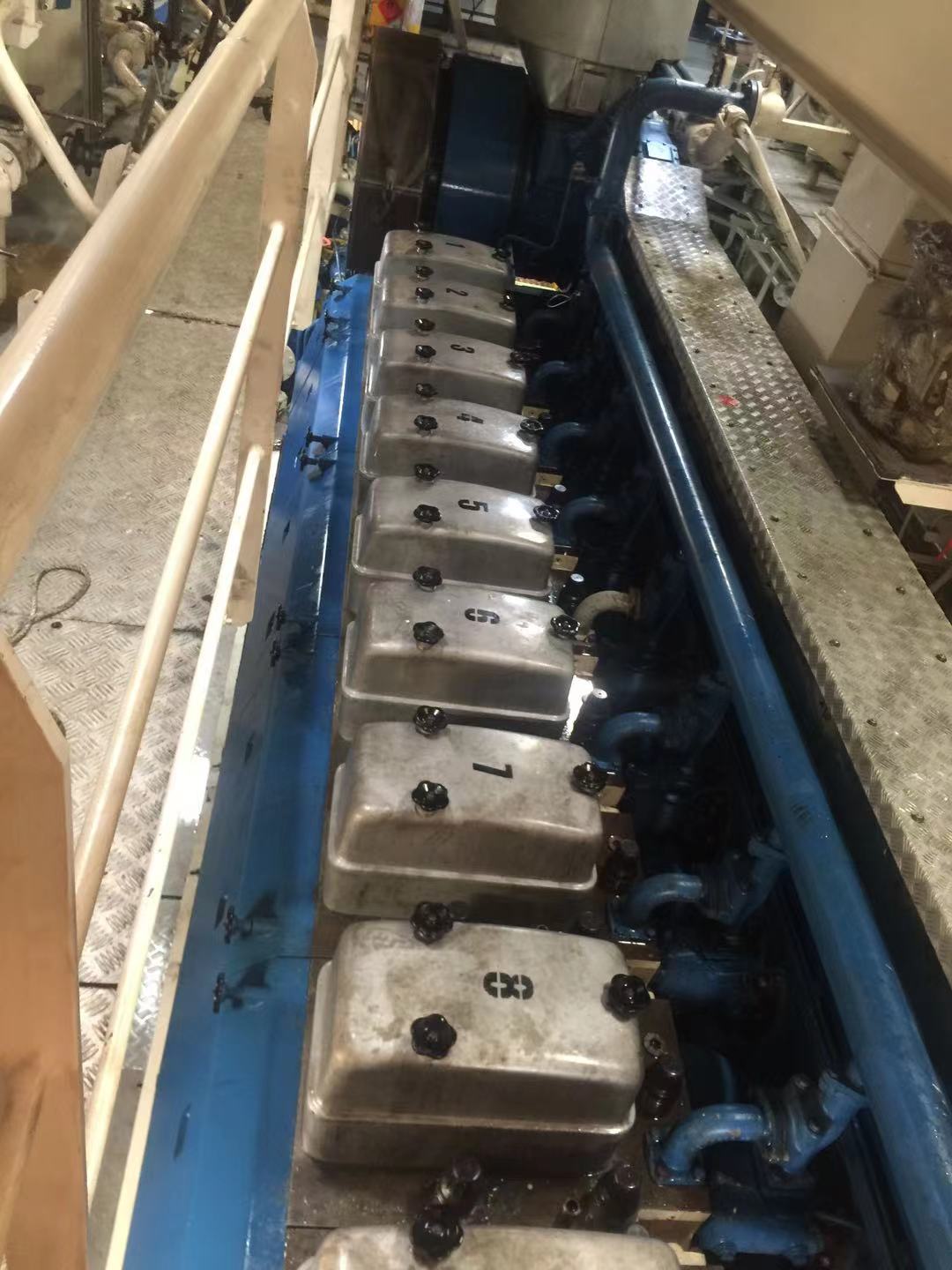

ME Brand：
Bergens
Main Engine Model：
BRM-9
ME Power：
7950kw
RPM：
750R/Min
Speed：
12KN
Aux. Engine Brand：
Caterpillar
Aux. Engine No.：
2
Aux. Engine Power：
355kw
Oil Consumption：
18.2T/D
Main Engine No：
Double
Anchor Handling：
yes
Fire Fighting Level：
LEVEL ONE

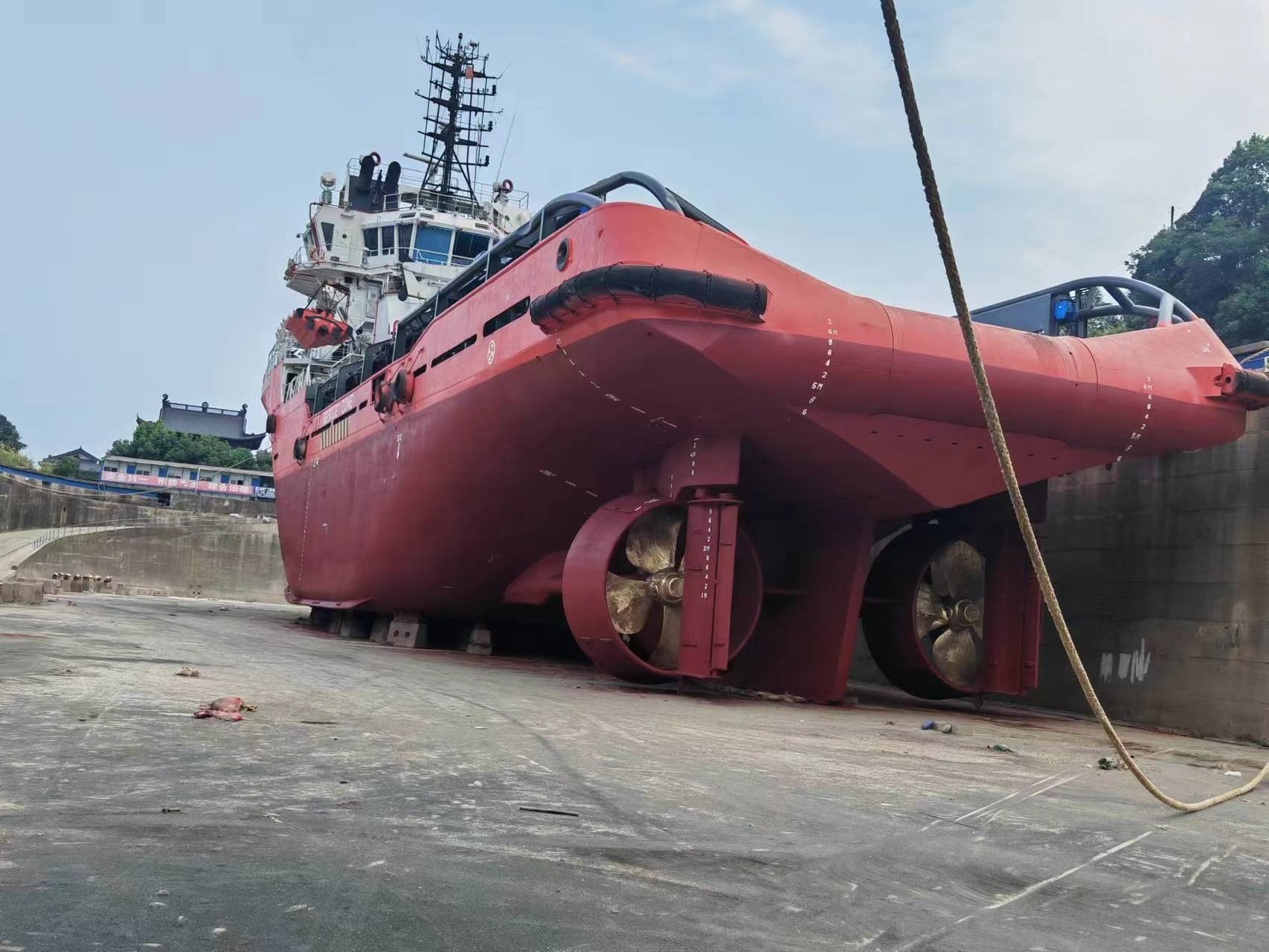

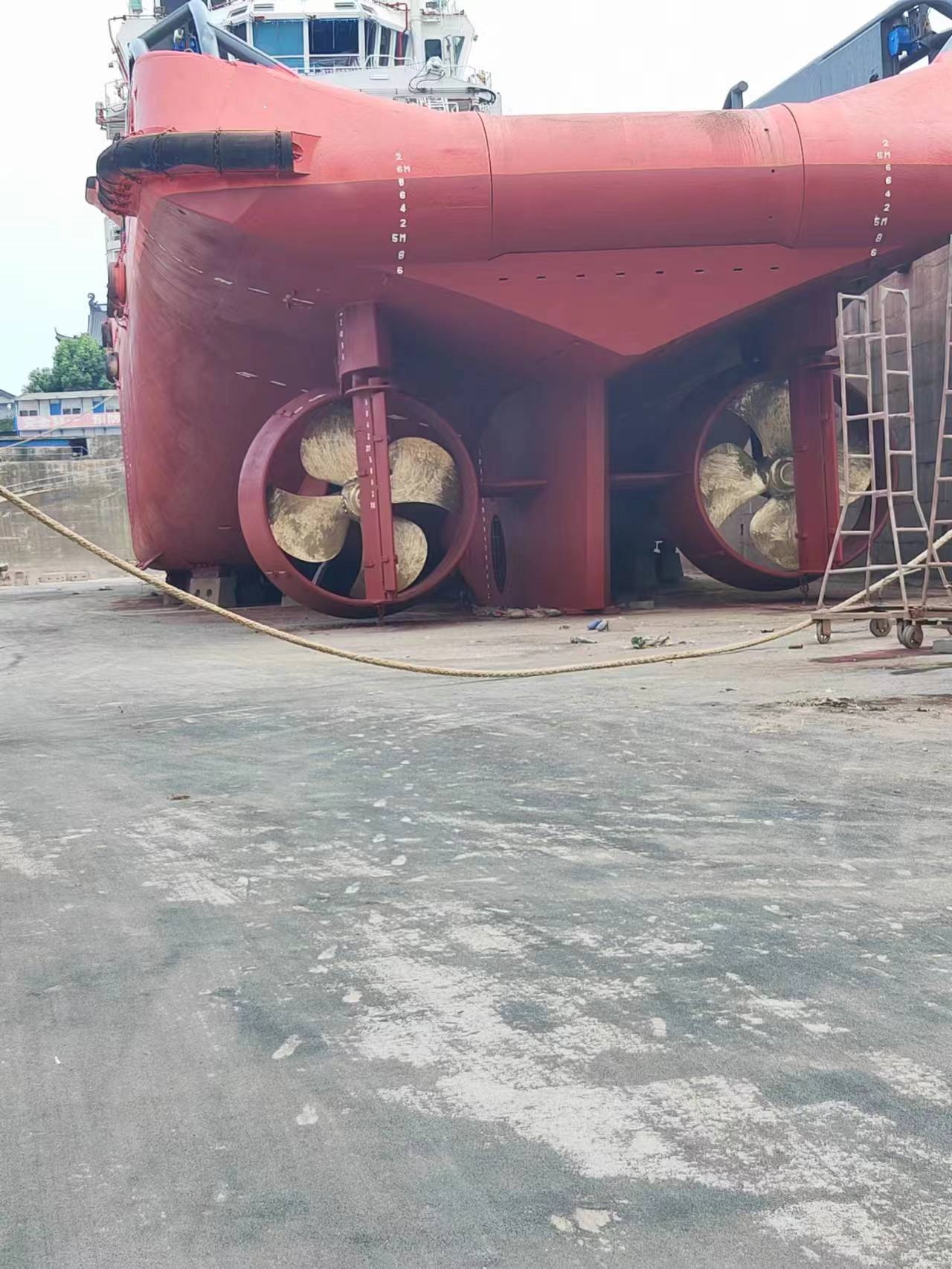

Propulsion type：
CONTROLLABLE PITCH
DP：
DP2
NOx emission standard of diesel engine：
Tier I
Release Date：
2024.03.19
Certificates, Drawings
Certificate of Inspection：
yes
General Arrangement Plan (GA)：
yes
Certificate of Ship Ownership：
No
Certificate of Registry：
No
Ship Equipment List：
yes
Remarks

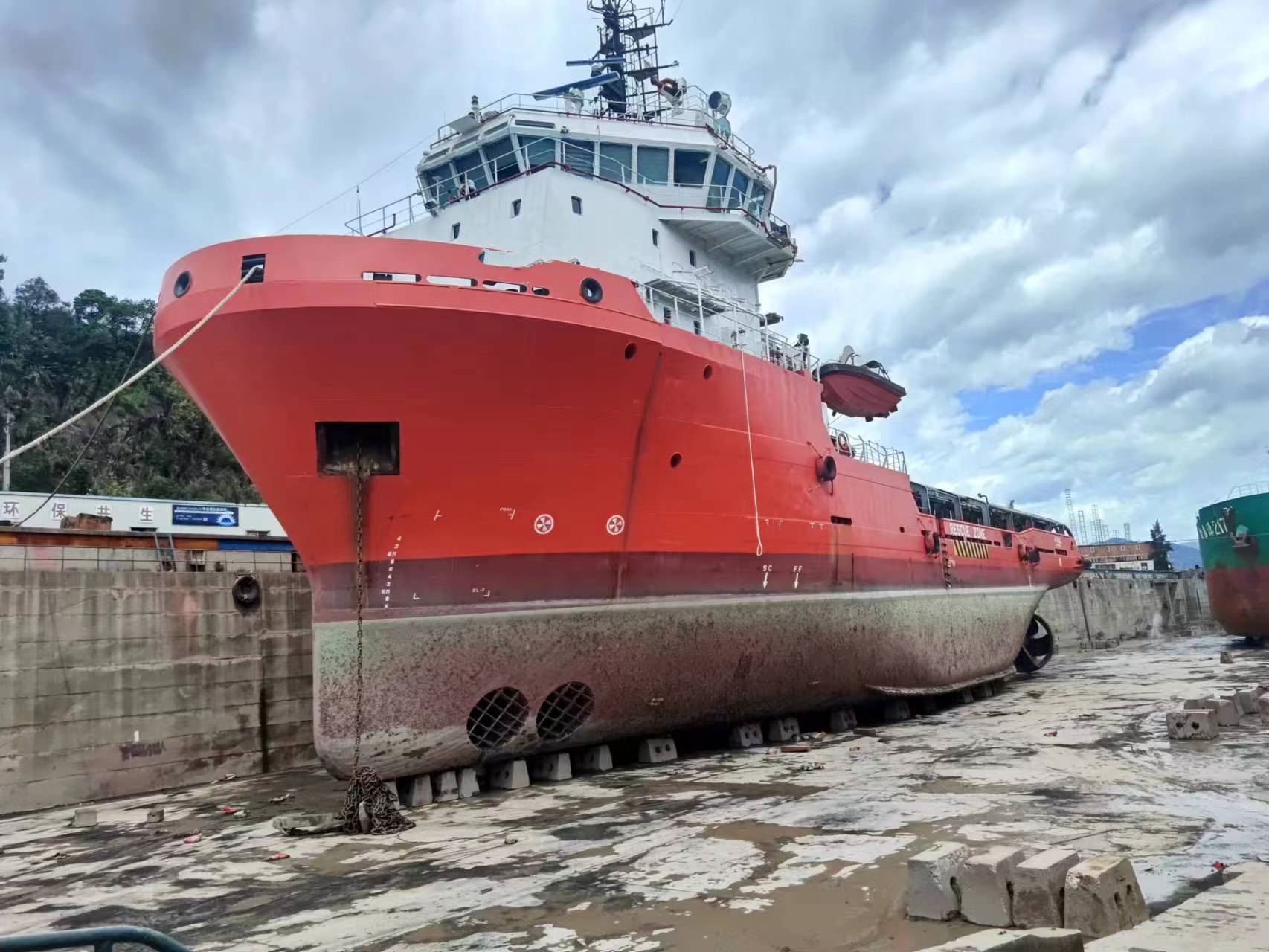

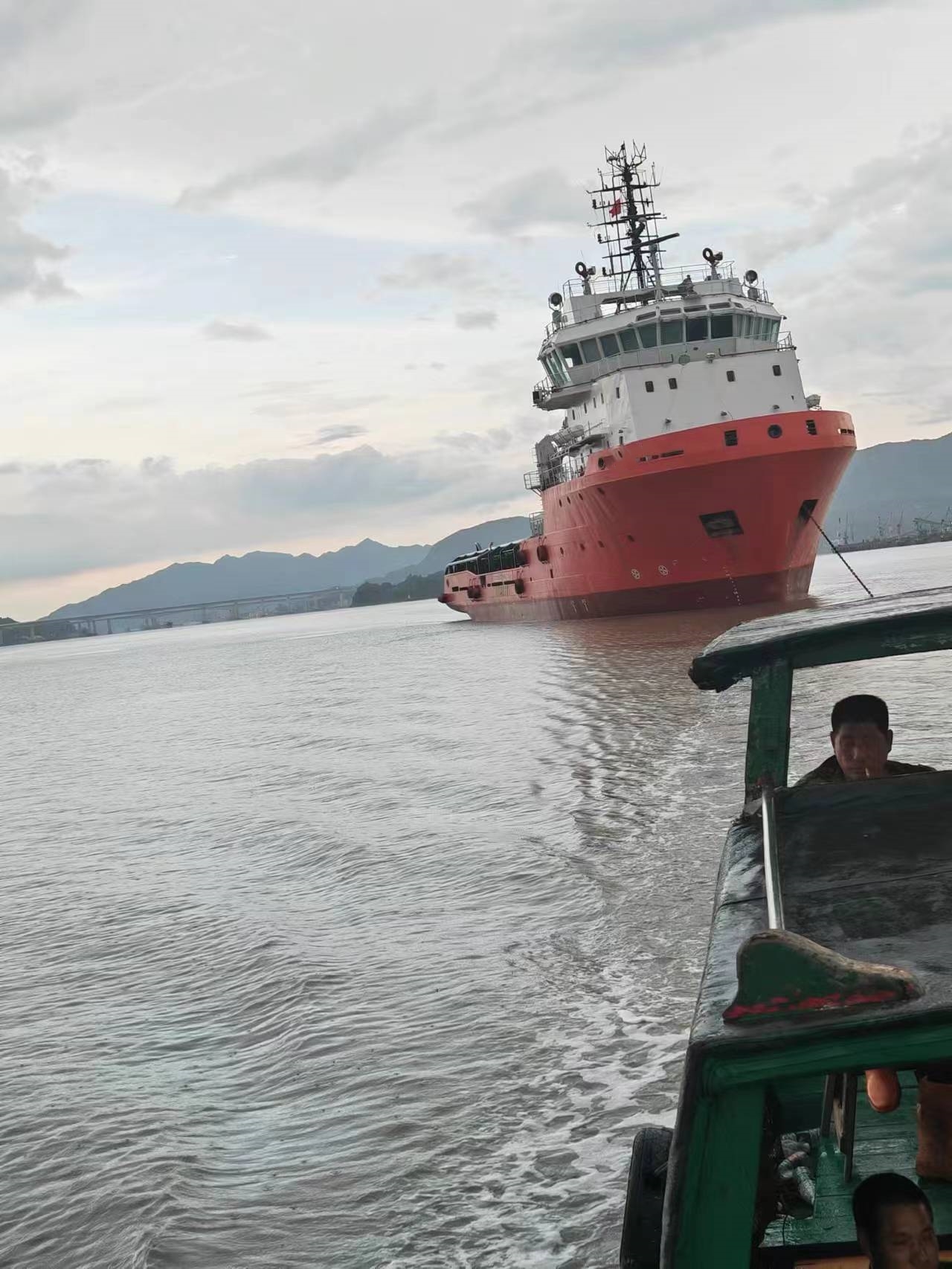

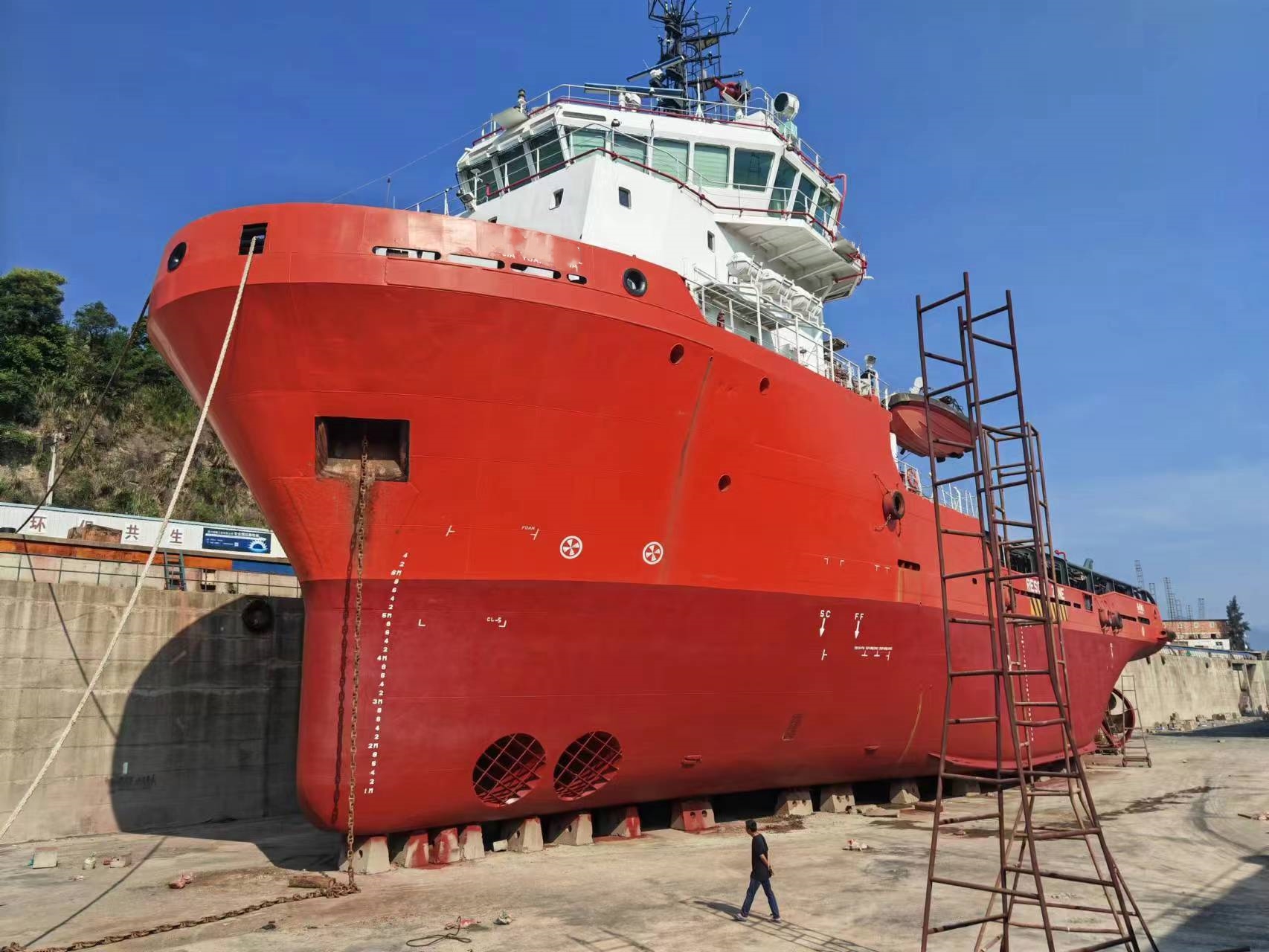

10，800 HP triple purpose tug/anchor tug supply vessel
July 2003 Ulsan lNP Shipyard in South Korea completed/transferred to China CCS Classification Society /
Length 68.9m/ width 15.5m/ depth 7m
Maximum water intake: 5m
Maximum load: 2110 tons
Bollard pulling force: 141.39 tons

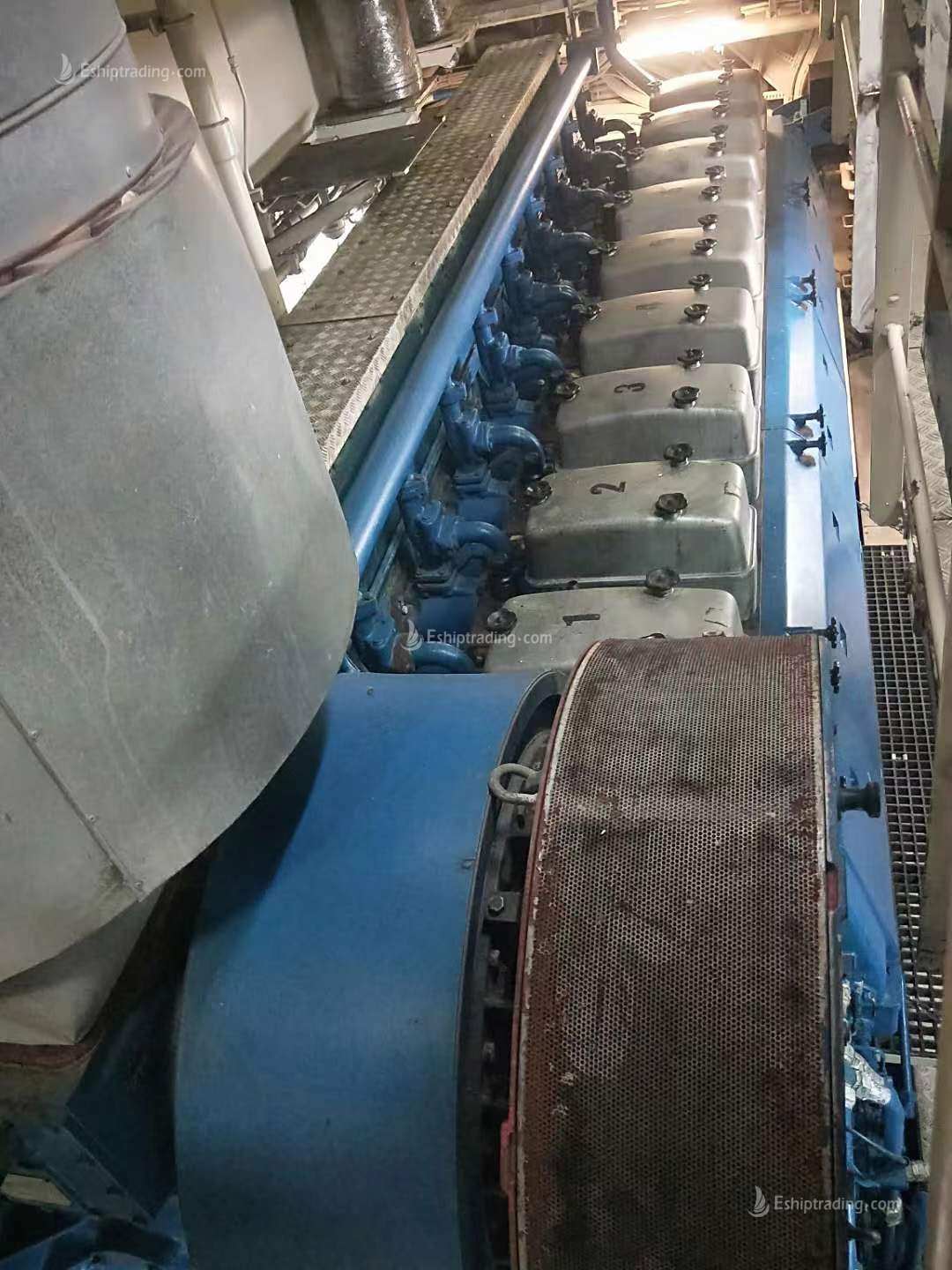

Main engine Wartsila: BERGNG/3975kW two / 10800hp
Maximum speed: 18 knots
Container port: China Five Star Flag
Shipping area: Ocean
Gross ton/net ton: 2332T/749T
Nail surface volume: 417 cubic meters
Bow thrust: 791 HP 2
Stern thrust: 791 HP 1
Ship: The maintenance of the whole ship has just been completed
Ship under sail: No loan/transferable
